CHARGEX® 48V 150AH Lithium Telecom Battery
ALP-248 Compatible · SiFi FiberCity® Edition
The CHARGEX CXN48150-V248 is the field-proven, custom-engineered 48V lithium iron phosphate (LiFePO4) battery solution developed in close collaboration with SiFi Networks and Nokia, for reliable backup power in streetside telecom cabinets and aggregation huts. This prismatic-cell battery was specifically designed, iterated, tested, and qualified to meet the rigorous demands of SiFi's FiberCity® deployments, delivering superior runtime, hot-swap capability, earthquake resistance, and environmental protection compared to traditional VRLA lead-acid systems.
Key Features & Advantages
Nokia-Qualified & ALP-248E Compatible
Fully tested and approved for integration into ALP-248E streetside cabinets — no modifications required — and Nokia-integrated fiber networks.
SiFi Networks FiberCity® Proven
Deployed and validated across multiple live FiberCity® projects including Simi Valley (CA), Oceanside (CA), Escondido (CA), and Farmington Hills (MI).

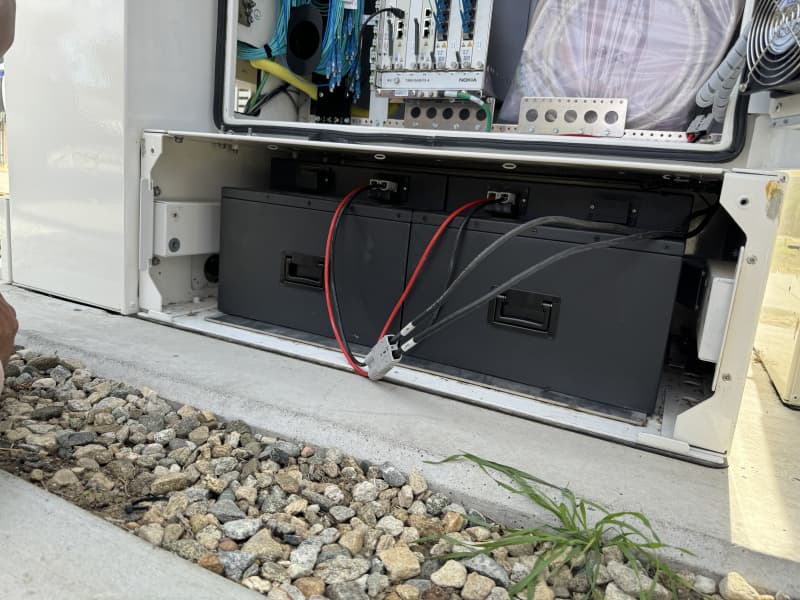

Hot-Swap Ready
Seamless field exchange: one battery powers the load while the second is swapped, eliminating downtime.
Extended Runtime
>12 hours full cabinet load support (paired 300Ah configuration); >6 hours at 50A discharge.

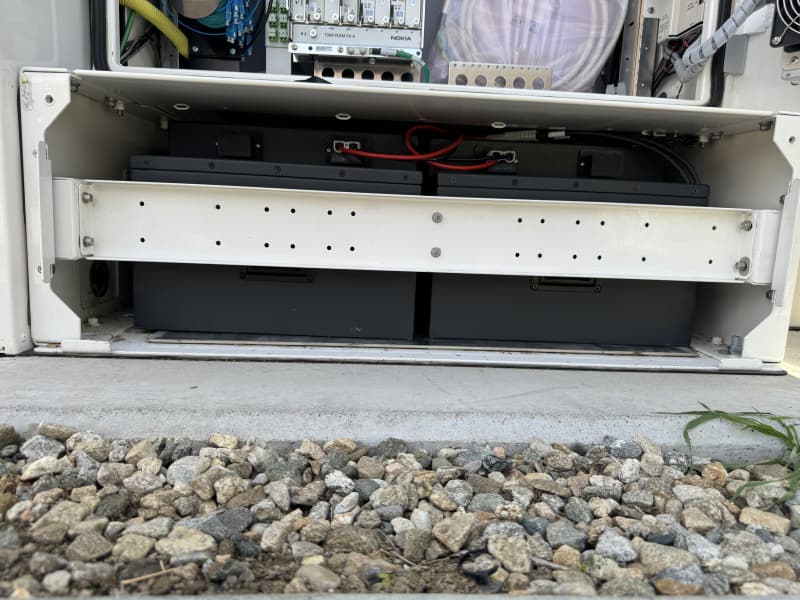

Earthquake-Resistant Design
Customized mounting brackets on existing cabinet beams and custom restraints engineered for seismic stability.
Rugged IP-Rated Enclosure
Durable anodized aluminum enclosure provides superior corrosion resistance and scratch protection. Recessed IP68 Anderson connectors (non-protruding, perpendicular mating), dual recessed handles (front + lid).
High Cycle Life & Advanced Safety
>6,000 cycles (80% capacity after 5,000 at 100% DOD). BMS with cell balancing, OVP/UVP, OCP, short-circuit protection, auto-recovery, NSD (nail-penetration thermal runaway prevention), and OSD (overcharge fuse protection).
Fast Charging
Compatible with 5kW rackmount chargers — 0 to 90% SOC in under 90 minutes. >90% round-trip efficiency.
Lightweight & Modular
130 lbs per unit. Series connections up to 96V or unlimited parallel configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 48V |
| Capacity | 150Ah (7.2kWh) |
| Usable Capacity | 150Ah (>100% DOD) |
| Continuous Charge/Discharge | 100A |
| Peak Discharge (5s) | 200A |
| Charge Voltage | 54V – 54.75V |
| Cycle Life | >5,000 cycles |
| Operating Temperature | 4°C – 40°C (no derating) |
| Dimensions (L × W × H) | 20.25" × 14.6" × 11" (508 × 362 × 279 mm) |
| Weight | 130 lbs (59 kg) |
| Chemistry | Prismatic LiFePO4 |
| Enclosure | Anodized aluminum, IP-rated |
| Connectors | Recessed IP68 Anderson (perpendicular) + custom harnesses |
Certifications & Qualifications
Nokia Qualification
Successfully passed Nokia Labs testing and integration validation for ALP-248E cabinets and fiber network compatibility.
ALP-248 Compatibility

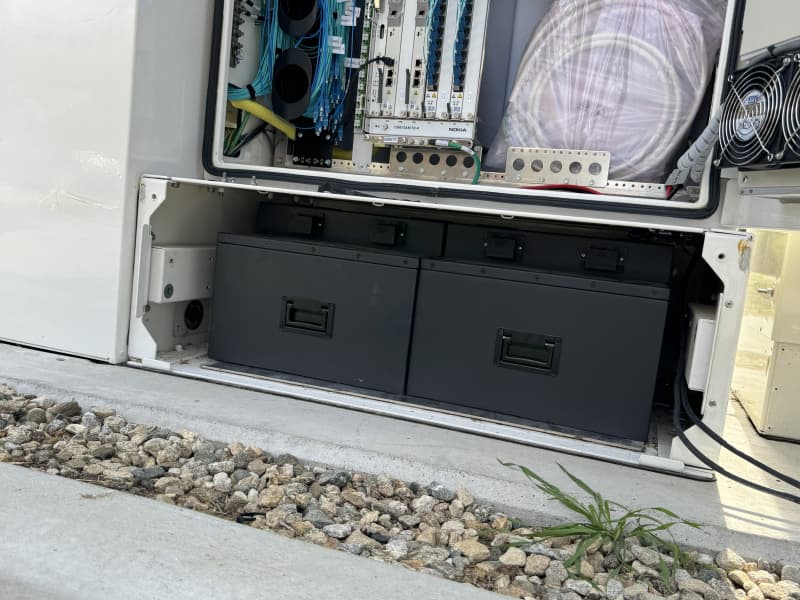

Direct drop-in fitment with no cabinet modifications; confirmed through multiple rounds of physical test-fits and measurements at Nokia staging facilities.
SiFi Networks Approval
Board-approved prototype and design iterations; deployed and operational in live FiberCity® networks across multiple U.S. cities.
Safety & Compliance
UL cell-level certification, CE marking, RoHS compliant, internal thermal fuse, NSD/OSD fire-prevention features.
Ideal Applications
CHARGEX® — Trusted Lithium Power for Fiber Networks
Developed over 24+ months in direct partnership with SiFi Networks and NOKIA, the CXN48150-ALP-248 is a field-proven solution powering real-world fiber deployments across the United States. Contact us today for quotes, samples, or integration support.
Ready to Deploy?
Our team is ready to support your integration, provide samples, or discuss volume pricing.
