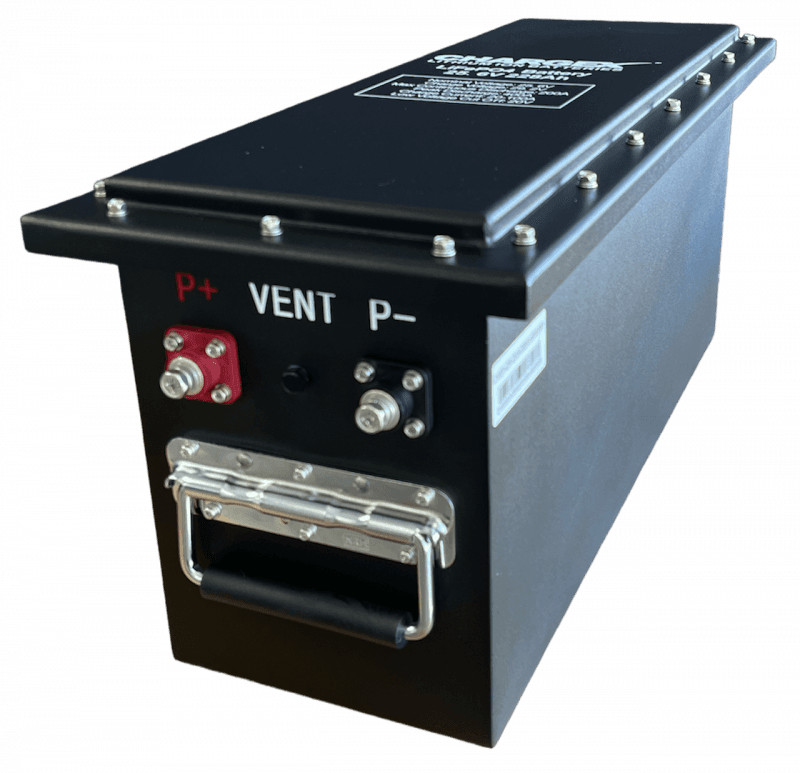

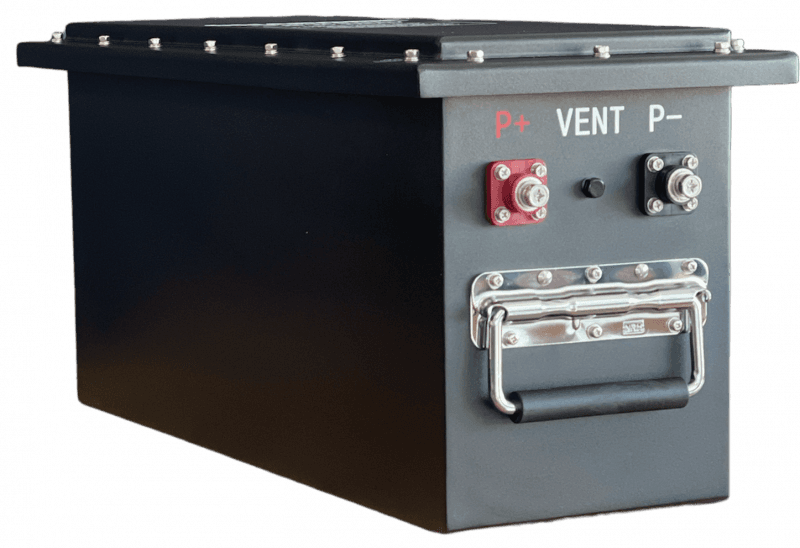

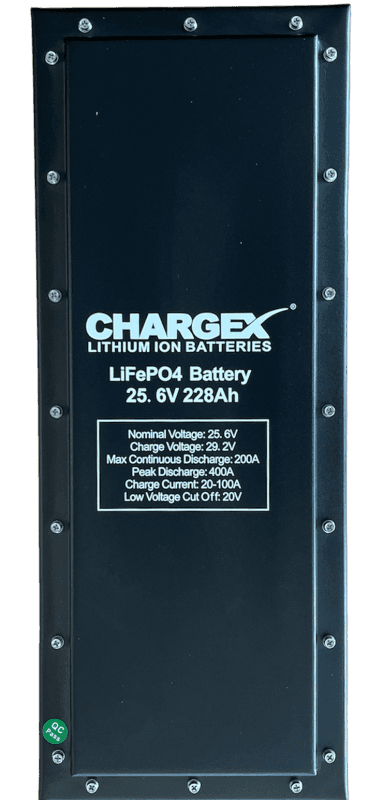

CHARGEX® 24V 228AH Lithium Iron Phosphate Battery
Deep Cycle · IP67 Waterproof · Multi-Application
The CHARGEX® 24V 228AH Deep Cycle Lithium Battery features Lithium Iron Phosphate (LiFePO₄) chemistry, delivering a 25.6V nominal voltage, 228AH capacity, and over 5,000 cycles at 100% depth of discharge. Engineered for reliability and ease of use, it ensures seamless integration and long-lasting performance in the most demanding aerospace, defense, solar, marine, RV, and industrial applications.
Key Features
Marine-Grade Durability
IP67 waterproof aluminum case engineered for use in both fresh and saltwater environments.
Rugged Construction
Dependable and robust build quality designed to withstand the harshest operational conditions.
Advanced BMS
Intuitive charging technology with support for multiple connection types, cell balancing, OVP, UVP, OCP, and short-circuit protection.
Flexible Configuration
Connect multiple batteries in series or parallel for fully customized voltage and capacity setups.
Zero Spark Charging Technology
Fully automatic, multi-stage charging with zero spark technology for safe operation in sensitive environments.
Temperature Compensation
Optimized charging and discharge performance across a wide range of ambient temperatures.
Microprocessor Control
Advanced microprocessor-controlled BMS for precise battery management and state-of-charge monitoring.
Wide Voltage Compatibility
Compatible with battery systems from 12V to 1000V — series and parallel expandable without limit.
Reverse Polarity Protection
Built-in safety feature protecting the battery and connected systems from incorrect wiring.
Unrestricted Mounting
No installation orientation restrictions — mount in any position for maximum versatility.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Charge Voltage | 28.8V – 29.2V |
| Capacity | 228AH |
| Peak Discharge (5s) | 400A |
| Continuous Discharge Rate | 200A |
| Continuous Charge Rate | 100A |
| Cycle Life | >5,000 cycles at 100% DOD |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Weight | 60 lbs |
| Length | 23" |
| Width | 6" |
| Height | 8" |
| Enclosure | IP67 Waterproof Aluminum |
Ideal Applications
Engineered for Reliability
The CHARGEX® CXE24228 delivers reliable, seamless integration and long-lasting performance across demanding environments. With 5,000+ cycle life, IP67 waterproofing, and a compact 60 lb form factor, it's built to go wherever your mission takes you.
Ready to Deploy?
Contact our team for volume pricing, integration support, or to request a sample unit.
