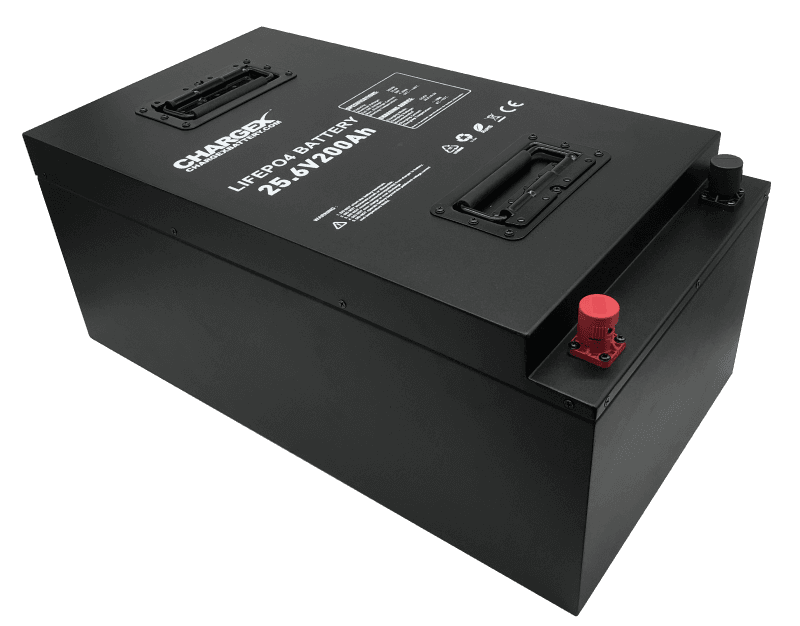

24V 200AH Deep Cycle Lithium Ion Battery
Drop-In Replacement · Cylindrical LiFePO4 · Lifetime Warranty
This 24V 200AH Lithium Ion Battery is plug and play for starting or deep cycle applications including Marine, RV, Golf, Solar, Off Grid, Propulsion, and other applications requiring a lightweight lithium battery to replace Lead Acid, Gel or AGM batteries. Designed as a true drop-in replacement — simply swap out your old battery with no modifications required.
Lifetime Lithium Warranty
Free replacement within the first 5 years. Lifetime 50% off a new replacement thereafter.
Key Features & Advantages
Lifetime Warranty
Free replacement within the first 5 years. Lifetime 50% off a new replacement thereafter — the strongest warranty in the industry.
Plug & Play Drop-In Replacement
Designed as a direct drop-in for AGM, GEL, or Lead Acid batteries. Remove the old battery, place the lithium in — no modifications required.
Massive Peak Discharge
800A peak discharge (5s) with 200A continuous — ideal for high-draw propulsion and starting applications.
>100% Depth of Discharge
Fully usable 200AH capacity at over 100% DOD. No need to keep a reserve — use every amp-hour without damage.
Explosion-Proof Stainless Steel Cells
Cylindrical LiFePO4 cells housed in stainless steel casings — engineered for safety in high-vibration and high-impact environments.
Automatic Battery Protection System
Internal BPS handles over-voltage, under-voltage, short circuit, reverse polarity, and thermal events automatically with instant response.
Low Self-Discharge
Less than 1% self-discharge per month — stores for months without needing a maintenance charge.
Series & Parallel Modular
Connect in series or parallel without restriction. Scale voltage or capacity freely to match your system requirements.
Wide Temperature Performance
Delivers 100% capacity at 40°C down to 80% usable at -10°C. Tested and rated across -40°C to 60°C.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Charge Voltage | 29.2V |
| Peak Discharge (5s) | 800A |
| Continuous Charge/Discharge | 100A / 200A |
| Capacity | 200AH (5,120W) |
| Usable Capacity | 200AH (>100% DOD) |
| Reserve Minutes @ 20A | 600 min |
| Reserve Minutes @ 50A | 240 min |
| Self Discharge | <1% per month |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell Type | Cylindrical |
| Weight | 123 lbs (141 lbs shipped) |
| Dimensions (L × W × H) | 23.62" × 12.8" × 10" |
| Modular | Series or Parallel |
Safety & Protection
| Protection Feature | Value |
|---|---|
| Automatic Low Voltage Disconnect | 20V |
| Automatic Short Circuit Protection | Instant |
| Automatic Over Voltage Protection | 31.6V |
| Automatic Reverse Polarity Protection | Instant |
| Internal Cell Thermal Safety Fuse | Yes |
| Flame Retardant Electrolyte | Yes |
| Length Way Circuit Boards | Yes |
| Automatic Internal Cell Balancing | Yes |
| Automatic Fault Recovery | Yes |
| Explosion Proof Stainless Steel Cells | Yes |
Temperature Performance
| Temperature | Usable Capacity |
|---|---|
| 60°C / 140°F | 103% |
| 40°C / 104°F | 100% |
| 20°C / 68°F | 98% |
| 0°C / 32°F | 83% |
| -10°C / 14°F | 80% |
| -20°C / -4°F | 70% |
| -30°C / -22°F | 60% |
| -40°C / -40°F | 10% |
Ideal Applications
Ready to Deploy?
Contact our team for volume pricing, integration support, or to request a sample unit.
